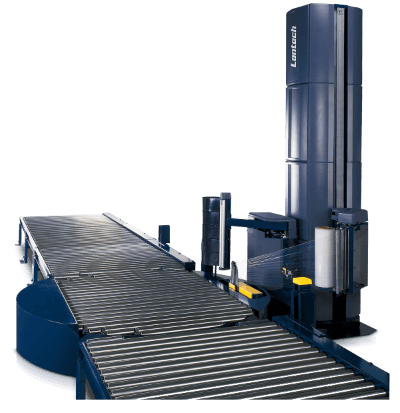

Explore Stretch Wrappers Automatic Q Automatic Overview Models Q Automatic
Increase the wrap height of your loads
Replace the 2032 mm (80") mast with a 2540 mm (100") or a 3556 mm (140") mast.
High Speed Package
Increase the speed of the turntable to 25 rpm.
Load Seeking Clamp
Eliminates the beginning film tail. Replaces the jaw clamp with a vacuum clamp that pivots out to the load.
6,000 LB Capacity Turntable
Increase the weight capacity of the turntable to 2721 kg (6000 lbs).
Cold Package
Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is 0 to -12 degrees Celsius (+32 to +10 degrees Fahrenheit).
Freezer Package
Operate in temperatures of -29 Celsius (-20 Fahrenheit).
Modular Electric Top Platen
Stabilizes tall, lightweight or unstable loads during the wrap cycle.
Corrosive Duty Package
Operation in a corrosive environment. It is for machines with exposure to agents such as salt and fertilizer.
Pallet Grip®
Makes a "cable" of film that locks the load to the pallet. The film cable decreases the risk of damage during shipment.
Turntable Washdown
Use water at "city pressure" to clean the turntable. Make sure that the water can drain from the area.
Power Roller Stretch Plus - Film Delivery System (FDS)
Senses and adjusts the wrap force to the changes in the tension on the film. It is for a turntable speed more than 12 rpm, for very light or fragile loads, or for exact control of the wrap force.
Production Speed Up to 45 Loads/Hr
Maximum Load Size
1376 mm L
1219 mm W
2336 mm H
(54" L x 48" W x 92" H)
Minimum Load Size
914 mm L
914 mm W
610 mm H
(36" L x 36" W x 24" H)
Maximum Load Weight
1814 kg
(4000 lbs)
Turntable Speed (Variable) 12 RPM
Turntable Size
1321 mm Effective Width, 2057 mm Diameter
(52" EW, 81" D)
Turntable Drive .075 kW (1hp) 180 VDC Motor w/ Brake
Perfomance FeaturesPallet Grip® Optional
Load Guardian Not Available
Standard Film Width
500 mm
(20")
Standard Pre-Stretch
200%
(100-300% Available)
Wrap Force Electronic Control
Film Capacity
254 mm Diameter, 508 mm Width
(10" D x 20" W)
Film Delivery System Power Roller Stretch
Automation Unit - Film Clamp Reach Arm with Impulsed Hot Wire Film Cutter
Weight and Size
Approx. Shipping Weight
2948 kg
(6500 lbs)
Size
5232 mm L
3886 mm W
3074 mm H
(206" L x 153" W x 121 1/8" H)
Pneumatic 85-142 lpm @ 6Bar, 3-5 cfm @ 80 Psi, 4 Bar (55 Psi)
Dedicated Electric Service Req. US 480 V, 3ph, 60Hz, Wye w/Ground
Dedicated Electric Service Req. EU 3L-PE-400V-50Hz-No Neutral
Enclosure NEMA 12 Enclosure with Disconnect and Safety Lock-out
Control PLC wth HMI Touch Screen
WarrantyWarranty Duration 3 Years, Unlimited Cycles, All Components Covered
