Price: $7,075.00

High quality, high-performance, easy-to-use stretch wrapping machine that makes safe-to-ship loads. Designed for low volume users and backed by a 3-year unlimited cycle warranty

Additional Machine Options

Customize your machine to fit your needs. Select an option below to add it to your order.

Controls / Electrical

If you have solid black loads, for example, tires or solid black boxes or bags , etc., our enhanced laser photo eye will be more effective at detecting the height of your load compared to the standard photOElectric sensor.

Includes 13 foot (4 m) power cord with 240 VAC supplied without the plug end. Must be hard wired during installation.

Load Handling

Guides attach to the turntable to reduces risk of fork lift impacting machine. Also, assists the fork lift operator in approaching the turntable and centering the load.

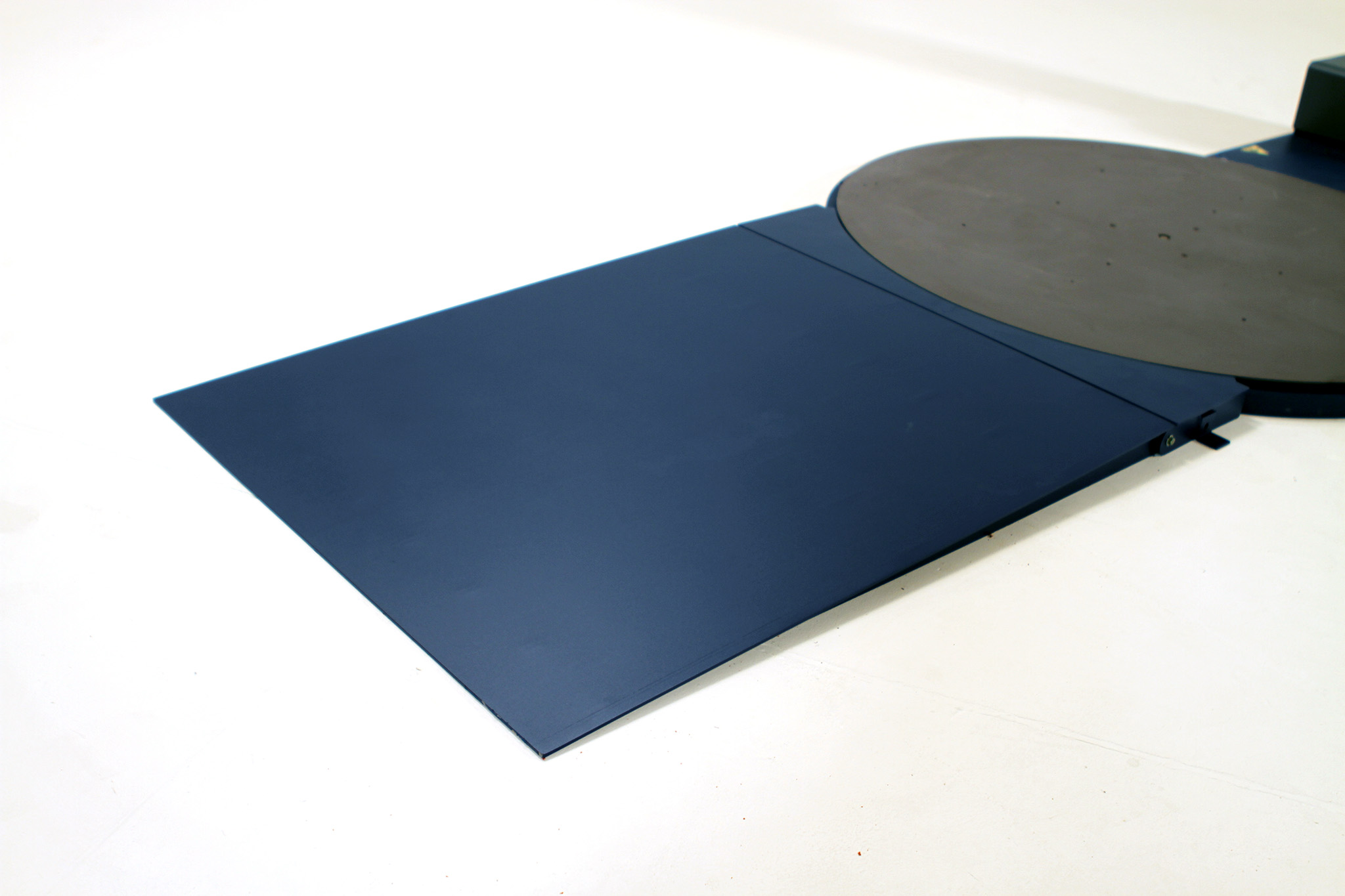

This ramp is 10,000 lb (4536 kg) capacity for standard fork truck or pallet jack loading. It can be attached at the 3, 6 or 9 o’clock positions. Each ramp is 48 inches (1219 mm) wide, 60 inches (1524mm) long, and connects to the low profile turntable with mounting holes that are standard with the machine.

Porch extension is installed between the standard porch and ramp extending the top part of the ramp. This option may be required for long or low lift pallet jacks.

Performance

G Force Plus Film Delivery System (FDS) includes an electric brake, Auto Film Cut-Off and “Wrap Assist”. The electric brake controls the tension on the film during both film assist and the wrap cycle. To change the film tension, adjust the potentiometer on the control panel. The percentage of tension shows on the film tension value display. The Wrap Assist function decreases the turntable speed and film tension by 50%. Wrap Assist makes it easy to manually rope or apply extra materials to the load such as corner boards, top sheets or labels. The Auto Film Cut-off (AFC) device is on the bottom the FDS. This lets the operator use different width films without adjustments. When the wrap cycle is complete the AFC cuts the film, which saves approximately 30 seconds of labor per load. This option is for loads that are more than 200 lbs. (91 kg) NOTE: G Force Plus and Auto Film Cut-off are not available separately. This option is not available as a retrofit.

Pallet Grip tightly winds 3″ to 5″ (76 mm to 127 mm) of the film web into a high-strength, durable film cable, locking the load to the pallet. Pallets shorter than 5″ (127 mm) may not be captured adequately. Severely outboard loads will not allow the cable to make strong contact with the pallet and severely inboard loads can cause the film to break at the corner of the pallet.

Other

Standard warranty on the G Series machine is three years. Lantech will extend the warranty of the machine by one year with the purchase of this option. Warranty begins at time of shipment from Lantech.

Standard warranty on the G Series machine is three years. Lantech will extend the warranty of the machine by two years with the purchase of this option. Warranty begins at time of shipment from Lantech.

Price is valid with machine purchase. Kit includes: Turntable Wheel Assembly (2 inch x .810) quantity 2 Turntable Drive Belt Membrane Overlay G Series with G Force Plus G Series Display Board (includes display board, interface board, assembled and ready for install) Film Delivery System (FDS) Lift Chain Brake Friction Pad (quantity 2) Solenoid, Diode, 24 Volt Solid State Relay, Relay Safety Off Kit, Proximity Switch

Price is valid with machine purchase. Kit includes: Turntable Wheel Assembly (2 inch x .810) – quantity 2 Turntable Drive Belt Membrane Overlay – G Series with G Force (standard) G Series Display Board Kit (includes display board, interface board assembled and ready for install). Film Delivery System Lift Chain Brake Friction Pad Proximity Switch

SKU: GSERIES Category:

Description

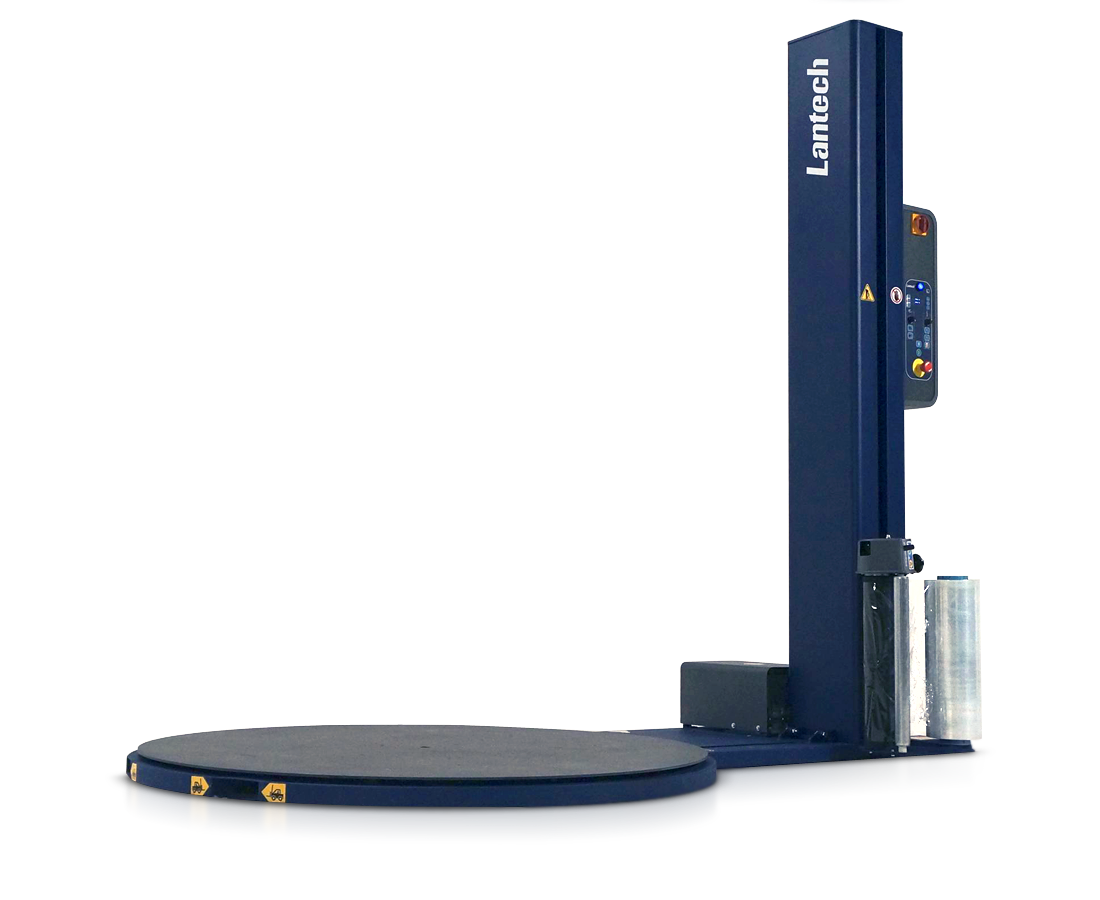

Tighter = Safer! Your reputation rests on what you deliver to your customers. Make sure your pallet loads are safe to ship. The G Force® Film Delivery System combined with easy to understand and use controls, gives you professional results on every load.

It’s a Lantech No compromises! Legendary Lantech durability and performance built into every G Series stretch wrapper, backed by a 3-year unlimited cycle warranty.

G FORCE FILM DELIVERY SYSTEM (standard)

Tension release lets you reduce tension so the film doesn’t pull out when you start wrapping. Turn tension knob clockwise to increase film tension and counterclockwise to reduce film tension.

WRAP CYCLE PAUSE (standard)

Pause the machine whenever you want, and start right where you left off, without resetting the machine. Used for inserting labels, corner protection, etc.

BANDING MODE (standard)

Stops Film Delivery System at selected areas and applies selected number of film revolutions. Used in cases where reinforcement is desired.

Additional information

Weight 1110 lbs
Dimensions 120 × 68 × 36 in
Peak Production Speed

Application Specific

Turntable Speed (Variable)

10 RPM

Turntable Drive Motor

3/4 HP TEFC (AC)

Turntable, Smooth Top

65 inch (1651 mm) Diameter

Maximum Load Diagonal / Dimensions

72 inch (1829 mm) recommended*

Maximum Wrap Height

90 inch (2286 mm)

Maximum Load Weight

3500 lbs (1588 kg)

Wrap Cycle Pause

Standard

Banding Mode

Standard

UL Listed Industrial Enclosure

Standard

Pallet Grip®

Option

G Force Plus® Film Delivery System

Option

Standard Film Width

20" (50.8)

Wrapping Force

Variable

Film Capacity

10" (25.4 cm) Roll Diameter

Film Delivery System

Roller Brake

Film Overwrap Photoelectric Sensor

Standard

Dedicated Electric Service Required

120 VAC, 20 AMP
(or 220 VAC, 15 AMP option)

Warranty

3 Years, Unlimited Cycles
