Lantech Automatic Case Sealer CS Random High Speed
Built for flexibility and speed, the CS Random High Speed is particularly suitable for manufacturing and distribution sites with multiple packaging lines that merge for sealing.
- Configurable for speeds up to 25 cases per minute.

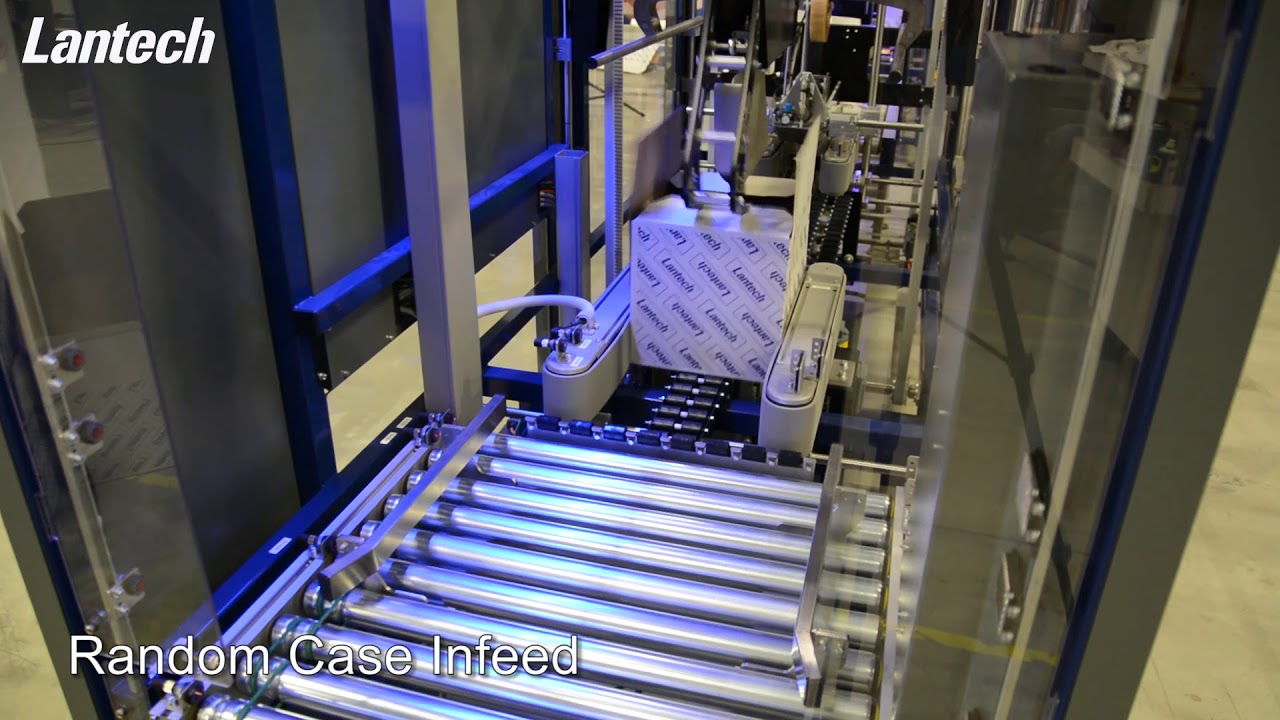

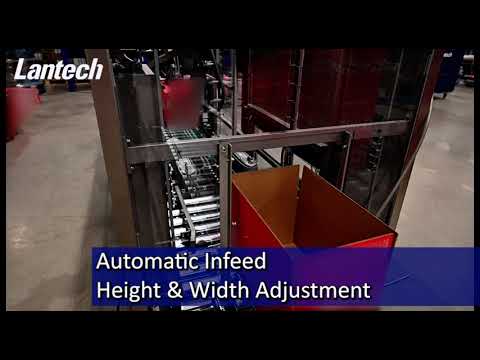

- Automatic machine adjustment by random case size detection at machine infeed side or external signals
- Communicates easily with other machines in the packaging line.
Lantech Case Sealers Keep Cases Square
Square cases pack, stack and protect products better. If cases are not square, they can become unstable when stacked and are more prone to being crushed, potentially causing damage to the product during shipment. Just as Lantech case erectors use our unique Total Control System to compensate for blank construction variations and form a perfectly square case, so do our case sealers. Locking in the shape to preserve the effort and investment you have made in erecting a square case and packing it properly.
Specifications
Performance
Production Speed
Max 25 Cases/Minute
(Options and application can change the speed.)
Case Size Minimum (Outside Dimensions)
200 mm L x 150 mm W x 120 mm H
(7 7/8” L x 5 15/16” W x 4 3/4” H)
Case Size Maximum (Outside Dimensions)
620 mm L x 510 mm W x 500 mm H
(24 2/5” L x 20 1/8” W x 19 11/16” H)
Weight and Size
Approx. Shipping Weight
±575 kg (±1265lb)
Service Requirements
Pneumatic
6 Bar (80 Psi)
Dedicated Electric Service Req. US
230V, 3-ph, 60Hz, Wye w/Ground
Dedicated Electric Service Req. EU
3L-PE-400V-50Hz-Neutral
Case Criteria
Case Types
RSC, HSC, FEFCO 0201
Flute Types
B, C, E
Wall Types
Single and Double Wall
Top Seal
Tape
Lantech® TH-Series Tape Head
Hot Melt
Robatech/Nordson
Warranty
Warranty Duration
3 Year
