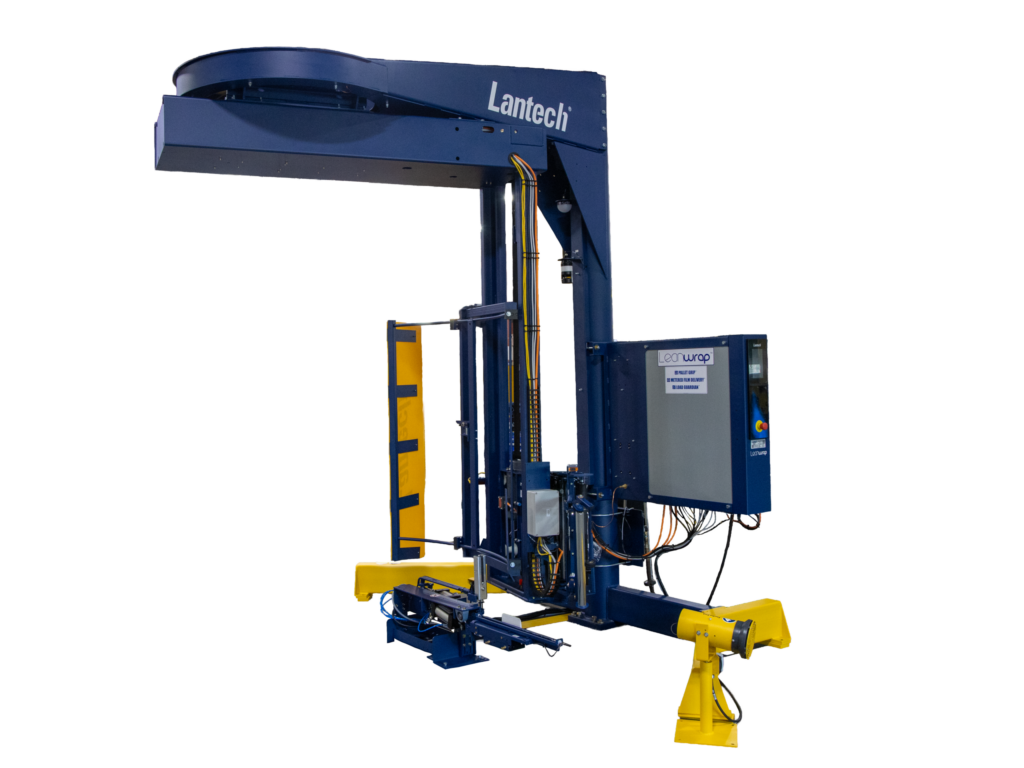

SL400AMR Stretch Wrapper
Lantech’s solution for fully automated environments
- Repeatable wrap cycle times for accurate production planning
- Enhanced safety through reduced manual interaction and forklift traffic
- Improves productivity and consistency
- Eliminates film breaks and film tails
- Reduces downtime and product damage
- Designed for the automated infrastructure you have now
Ideal for fully automated environments
Reliable Interface for AMR Integration
- Predictable pallet interface
- Safe, AMR-friendly machine access
- 3 Year warranty – no exclusions, unlimited cycles, no exceptions
TurboTak® – Lantech’s Film Tail Management Solution
- Eliminates dragging film tails that can falsely trigger AMR sensors and shut down production
- “Nails” film tail to the load with two precise, high-velocity blasts of air
- Self-contained with no exposed mechanical components
- Does not require heat
Load Seeking Clamp® – Improves uptime, wrap quality and reduces film breaks
- Reduces film breaks and pull-outs at the start of the wrap cycle
- Moves to the side of the load, ensuring the leading film tail is captured
- Provides 3x the holding force of conventional clamps
Specifications
Performance
Peak Production Speed
Up to 40 Loads/Hr
Load Size Diagonal (Recommended)
1931 mm (76")
Maximum Load Wrap Height
2032 mm (80")
Maximum Load Weight
Floor capacity
Performance Features
XT Cut and Clamp 5.0®
Not available
Auto Film Cut-Off®
Not available
Pallet Grip®
Standard
Load Guardian
Standard
Standard Film Width
508 mm (20")
EZ Thread Film Delivery
Standard
Standard Pre-Stretch
225%
Wrap Force
Variable (Electric)
Film Capacity
250 mm (10”) Roll Diameter
Film Delivery System
Power Roller Stretch Plus
NEMA Type 1 Enclosure
Standard
TurboTak®
Standard
Load Handling
Wrap Arm Drive
3/4 HP TEFC
Wrap Arm Speed
15 RPM
Wrap Arm Zone
2280 mm (90")
Weight and Size
Approx. Shipping Weight
1361 kg (3000 lbs)
Size
4801 mm x 3810 mm x 3073 mm
(189" L X 150" W X 121" H)
Service Requirements
Pneumatic
5.5 Bar (80 Psi)
Dedicated Electric Service Required
208-240VAC/16A/1-Phase/50-60Hz
Warranty
Warranty Duration
3 Years, Unlimited Cycles, All Components Covered

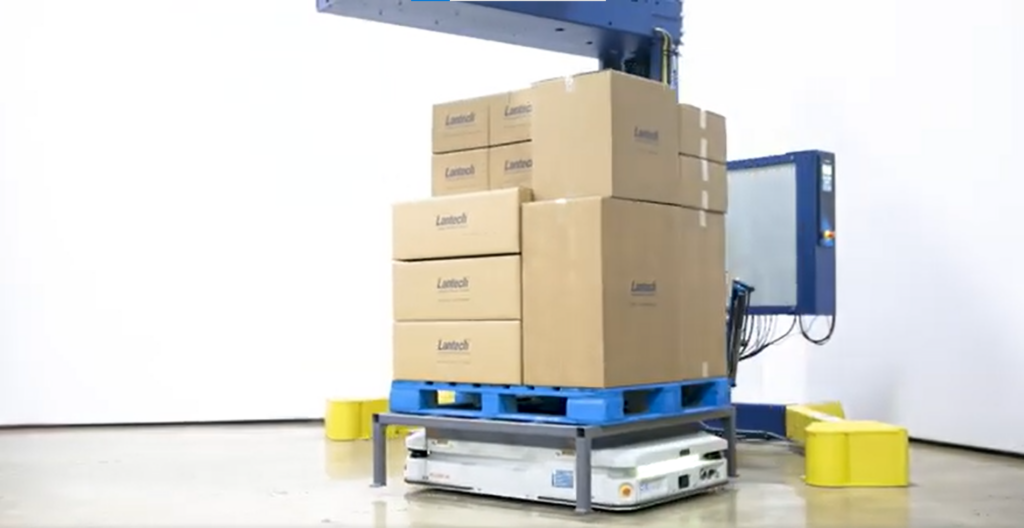

Designed for AMR-Driven Automation

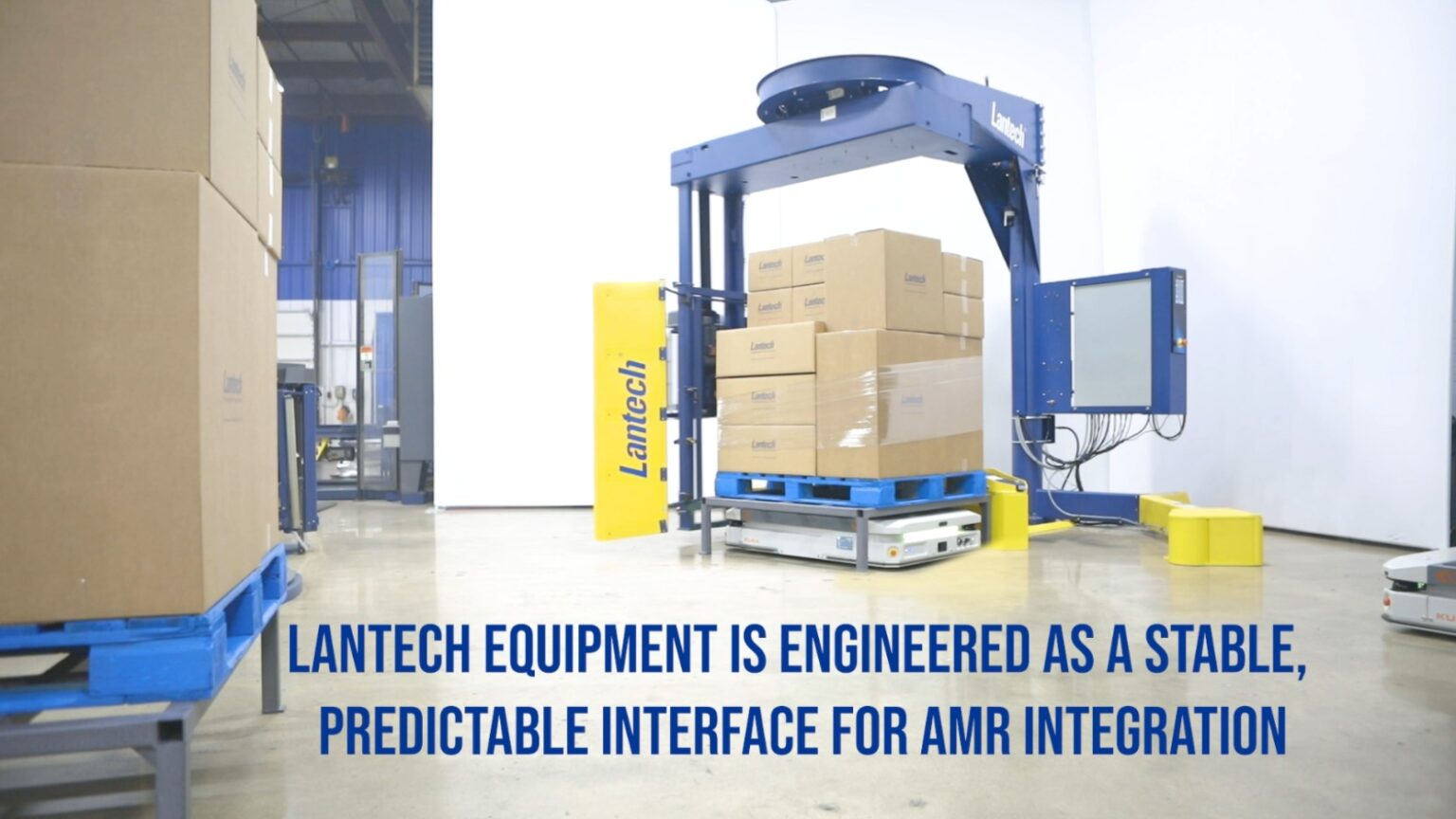

Lantech equipment is designed to integrate seamlessly with AMRs, providing a stable, predictable interface across stretch wrapping and case & tray handling operations. Our approach simplifies system integration with repeatable performance, clear machine communication, and layouts that support safe, uninterrupted AMR traffic. With proven experience in highly automated environments, Lantech helps reduce operator involvement, minimize downtime, and keep automated material flow moving.
- Predictable interface built for AMRs
- Consistent packaging results that support production planning
- Clear machine states for dependable AMR communication
- Designed for safe, uninterrupted automated flow

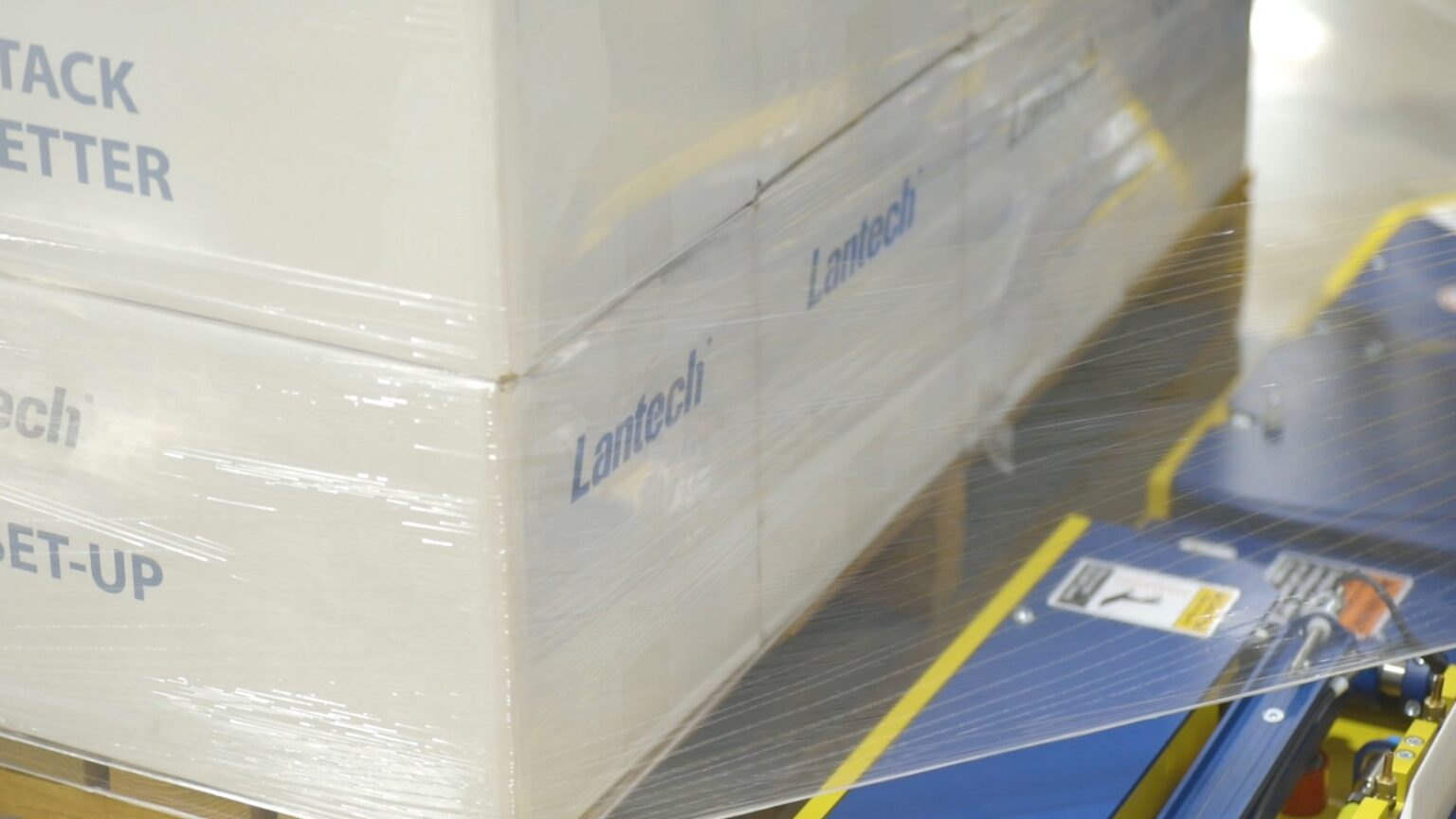

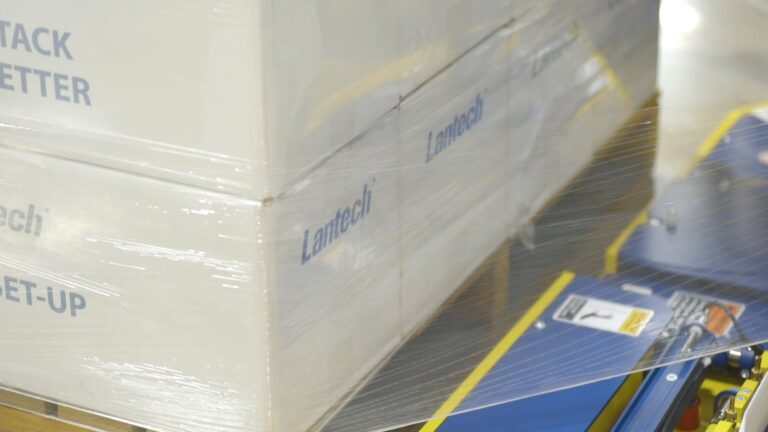

TurboTak®
TurboTak’s patented design eliminates dragging film tails by providing two stages of precise, high-velocity blasts of air: The first blast shapes the film web in the precise location; the second, more focused blast, “nails” the film tail to the underlying layers of film.
Load Guardian®
Load Guardian is Lantech’s patented control system that is based on 50+ years of customer observations. It eliminates the operator guesswork to make it simple to create, maintain and deliver the right containment force for safe-to-ship loads every time.
Lantech Exclusives
Pallet Grip®
Avoid product damage by locking the load to the pallet.
Load Guardian®
Create, maintain and deliver safe to ship loads every time!

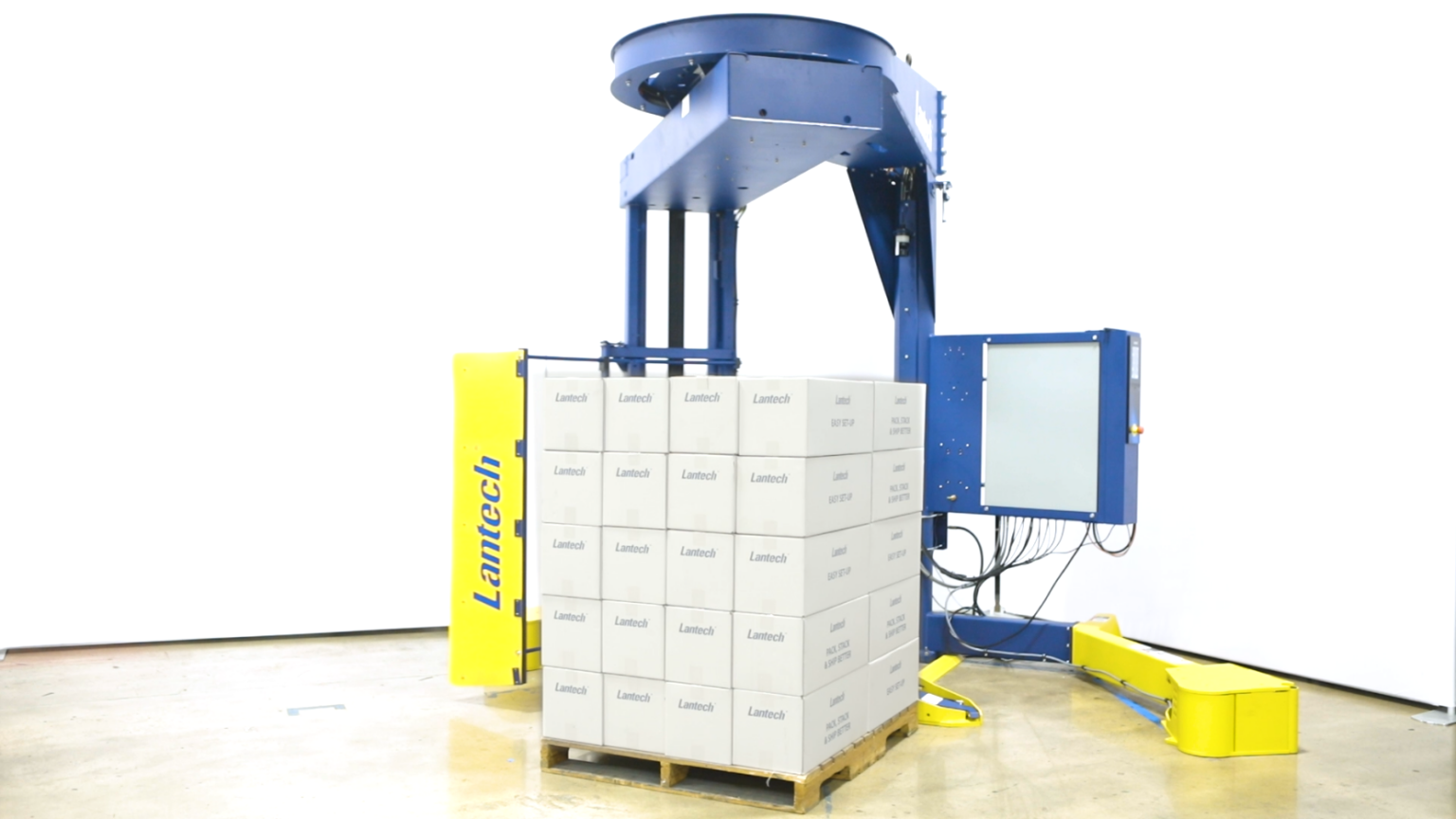

Load Seeking Clamp® 4.0
Moves to the load to attach film at the start of the wrap cycle, with three times the holding force of conventional clamps.
TurboTak®
Eliminate dragging film tails.
